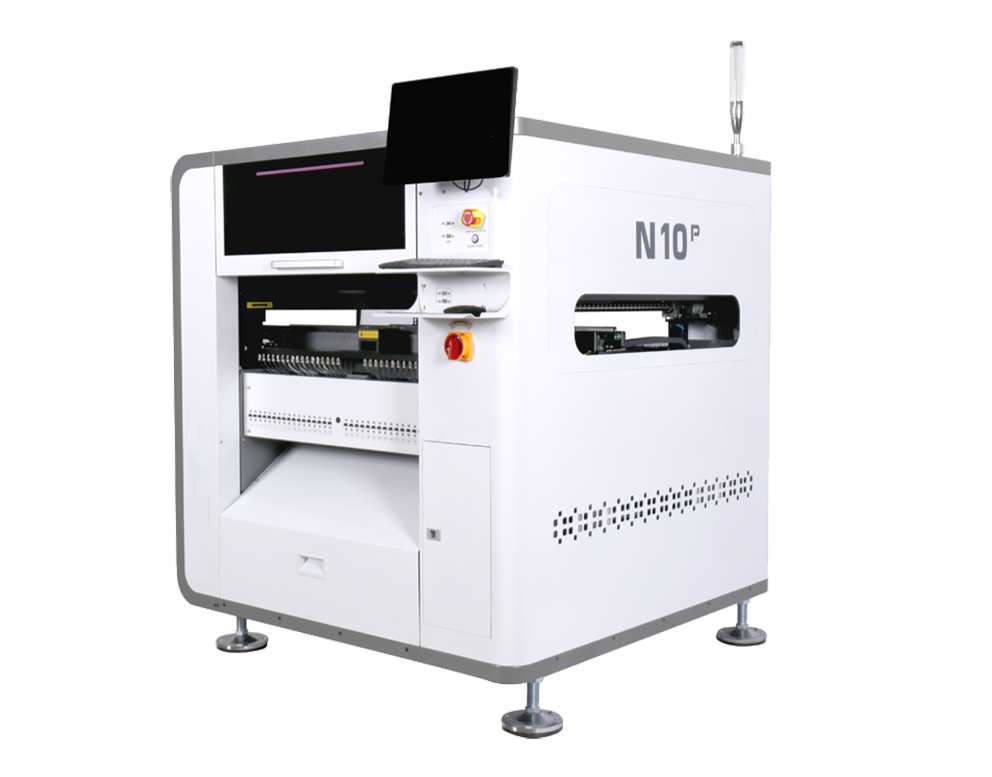

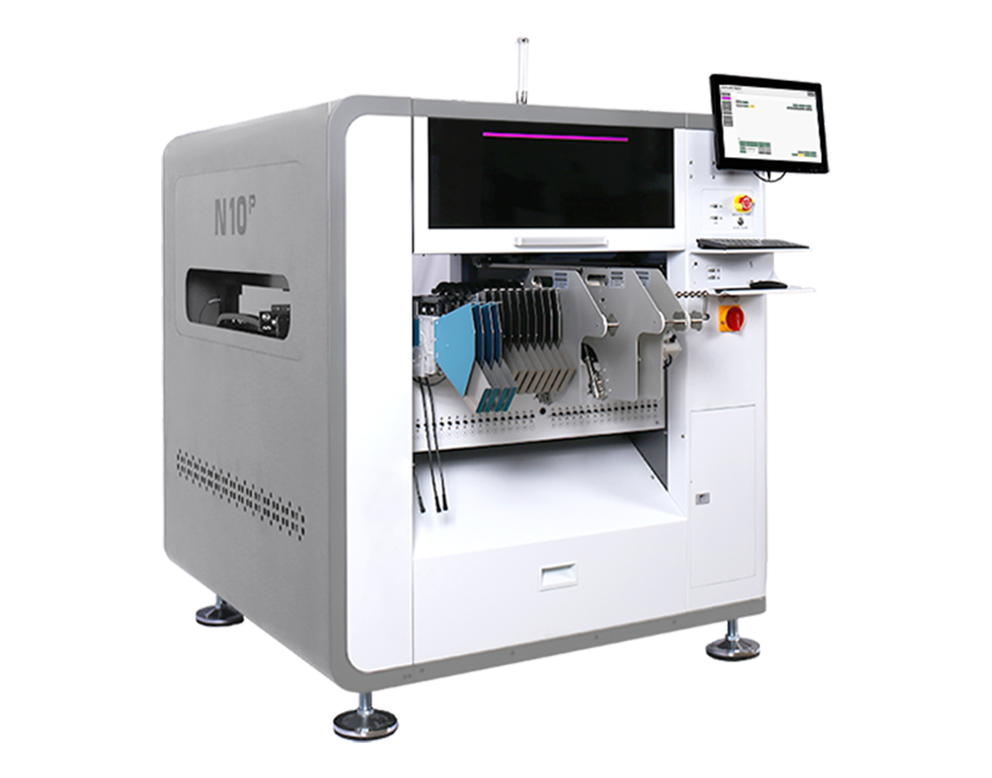

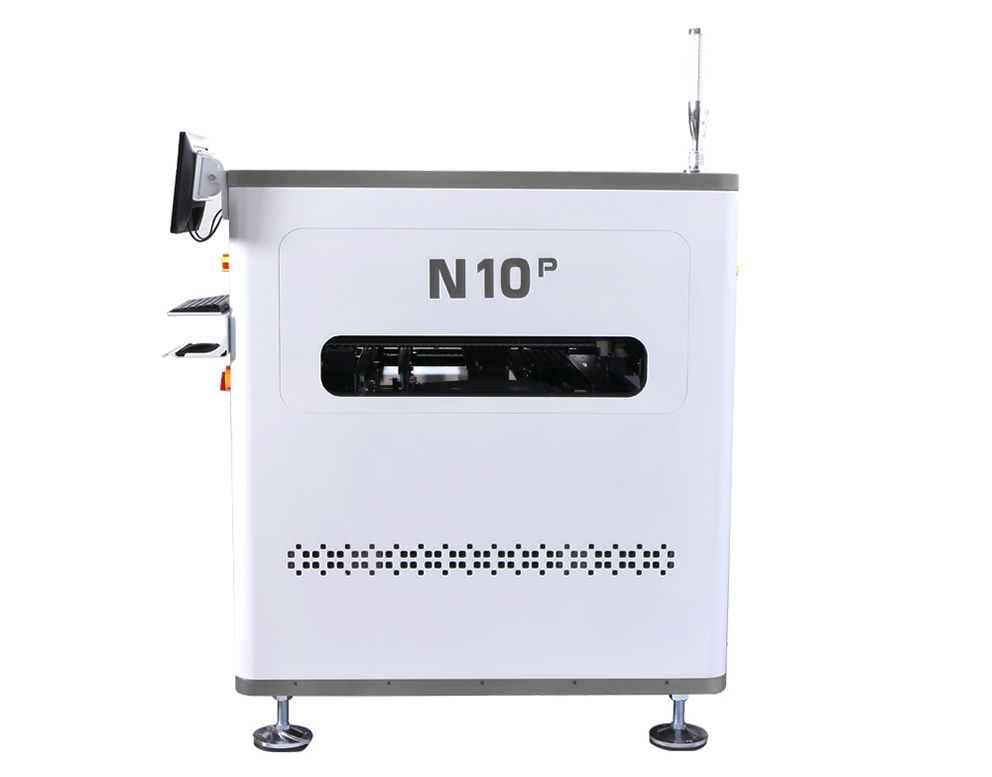

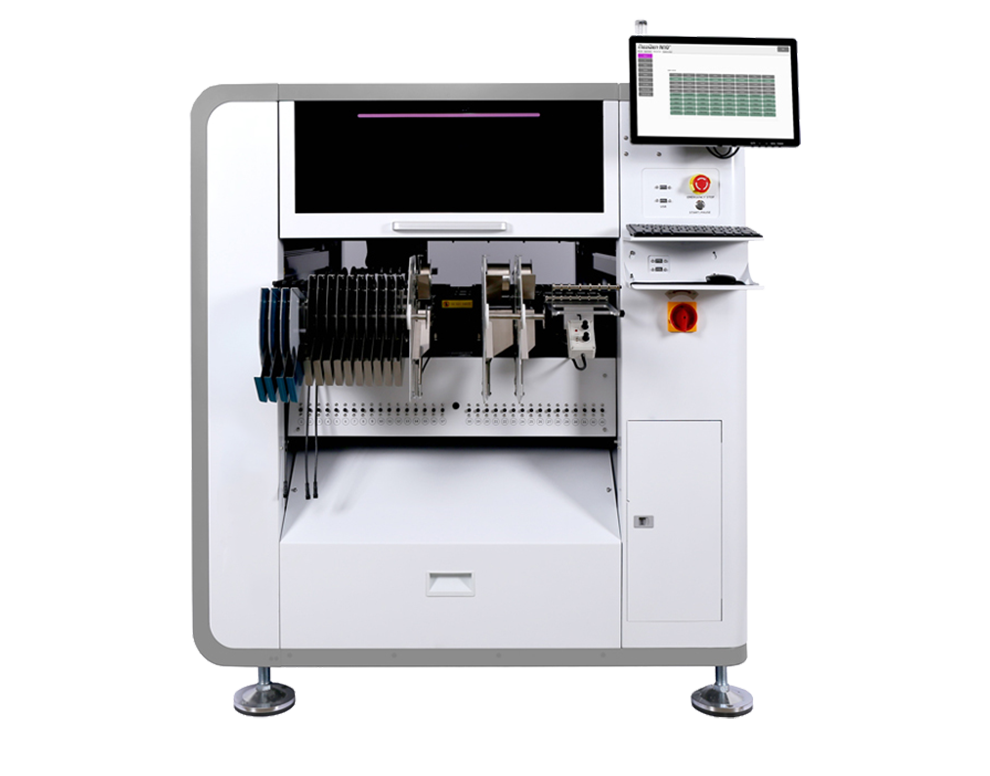

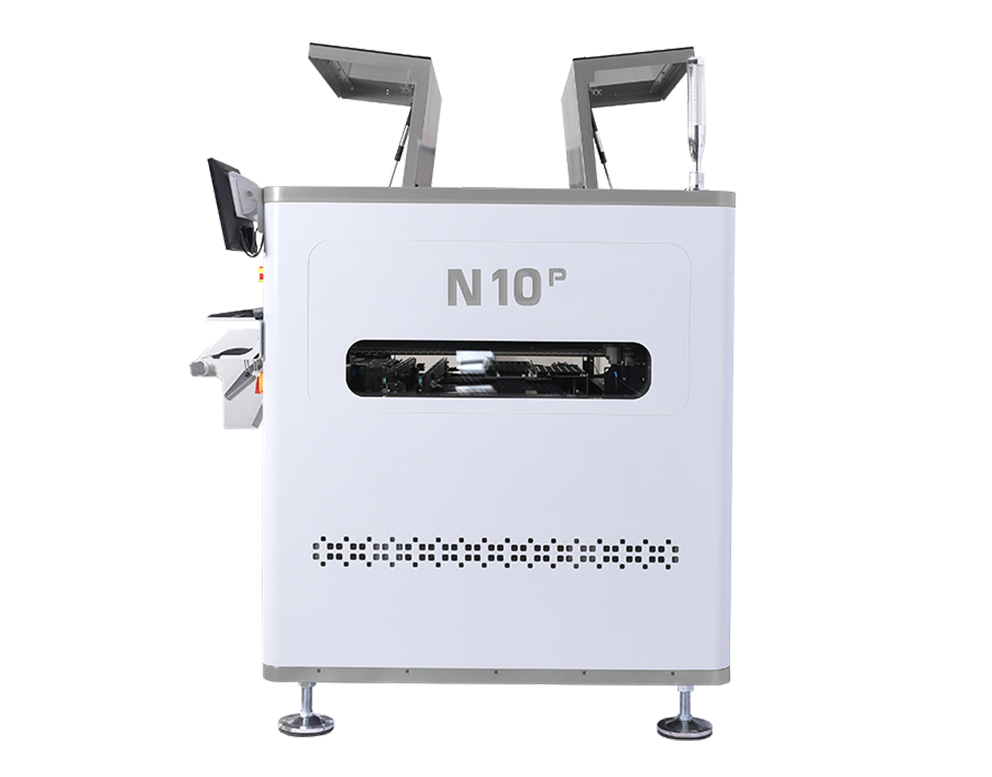

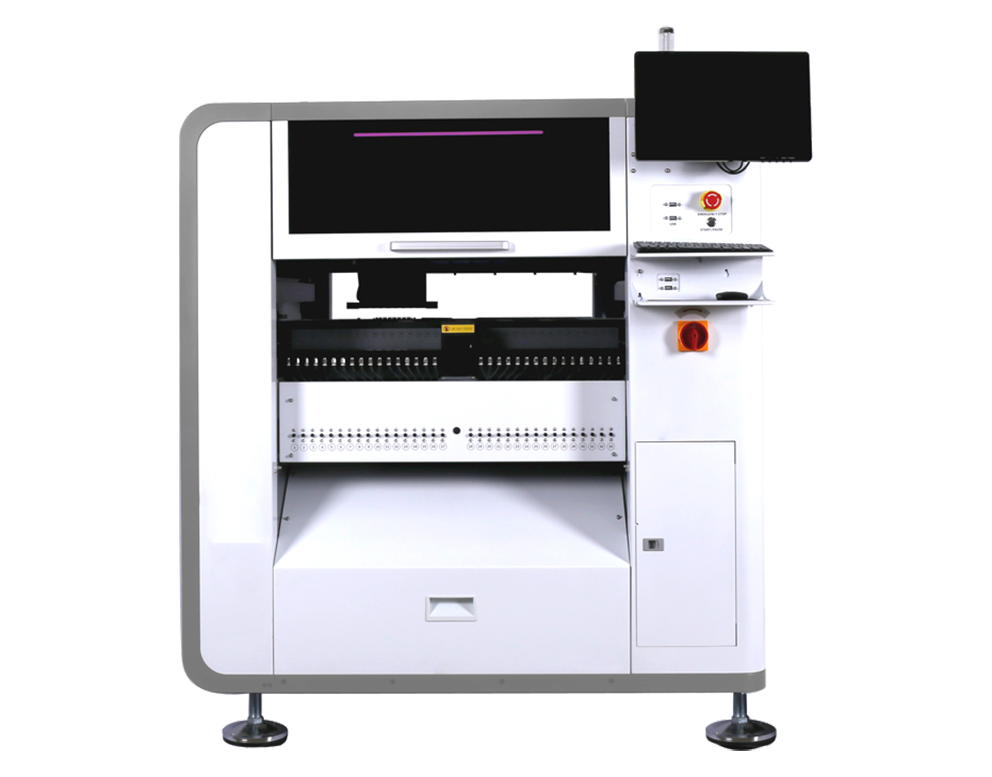

Making high-quality machining accessible to all, this machine is designed to be price-conscious.
Features

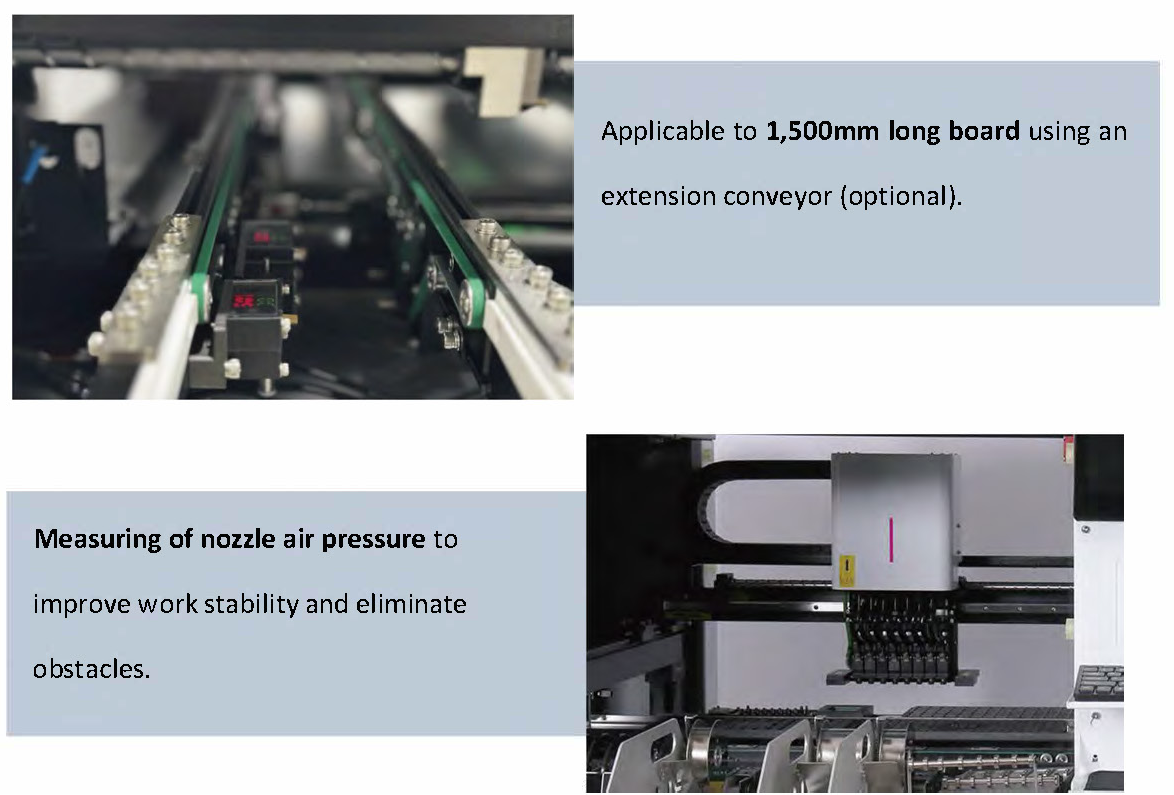

Support PCB within size (L)1500mm*(W)450mm

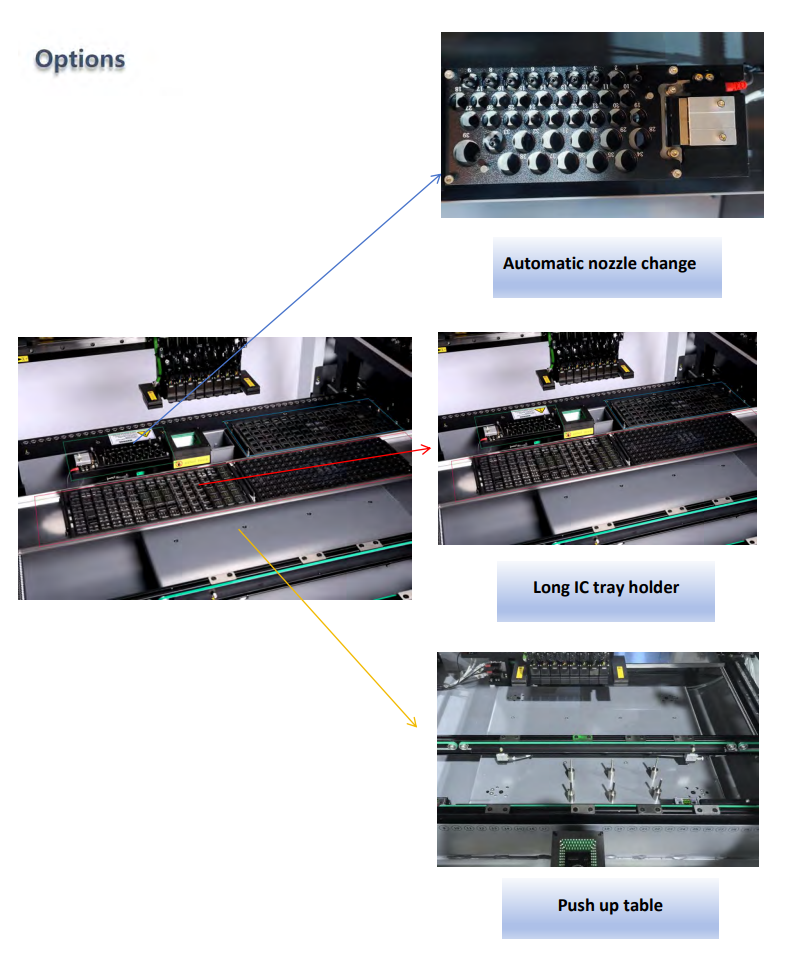

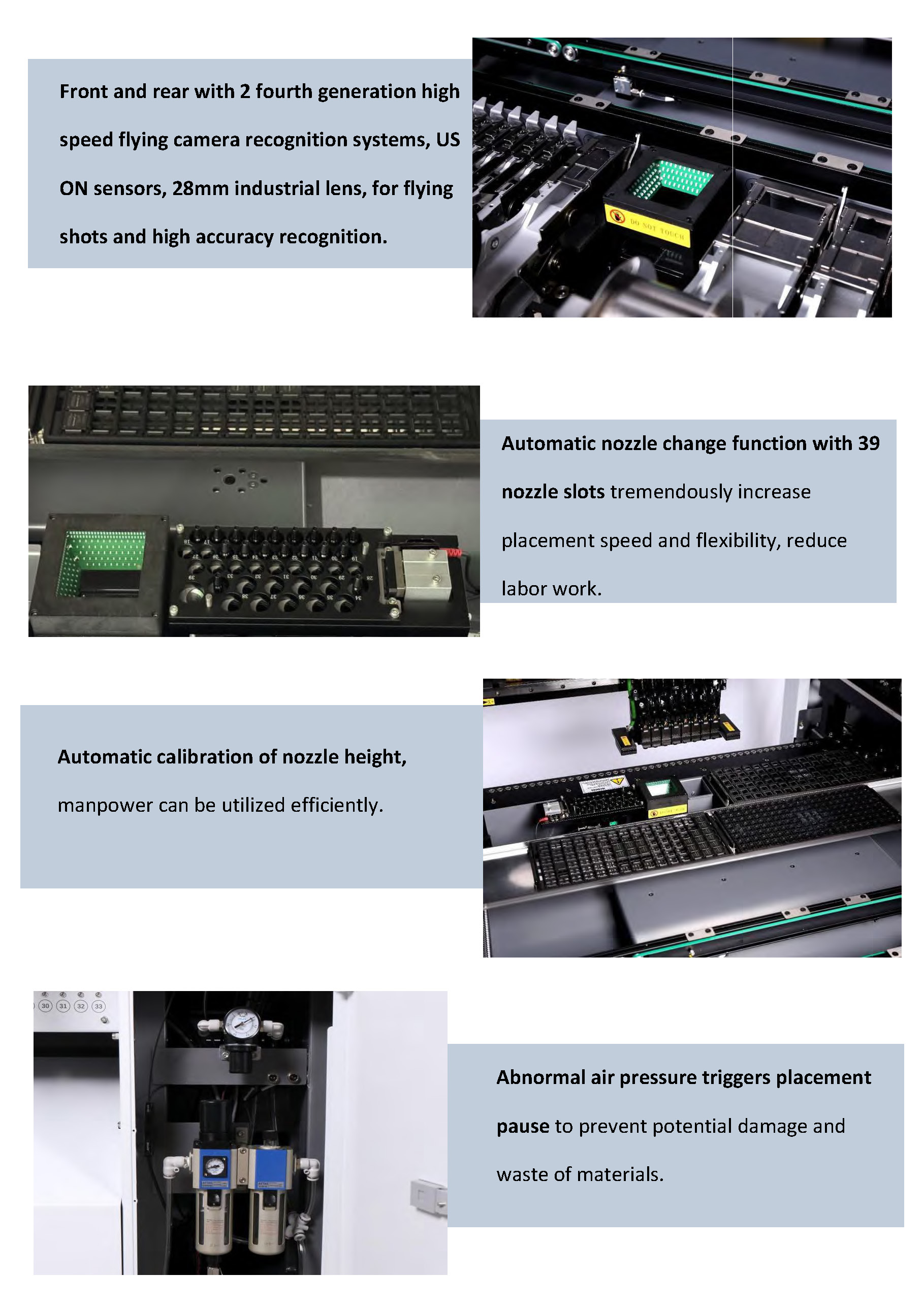

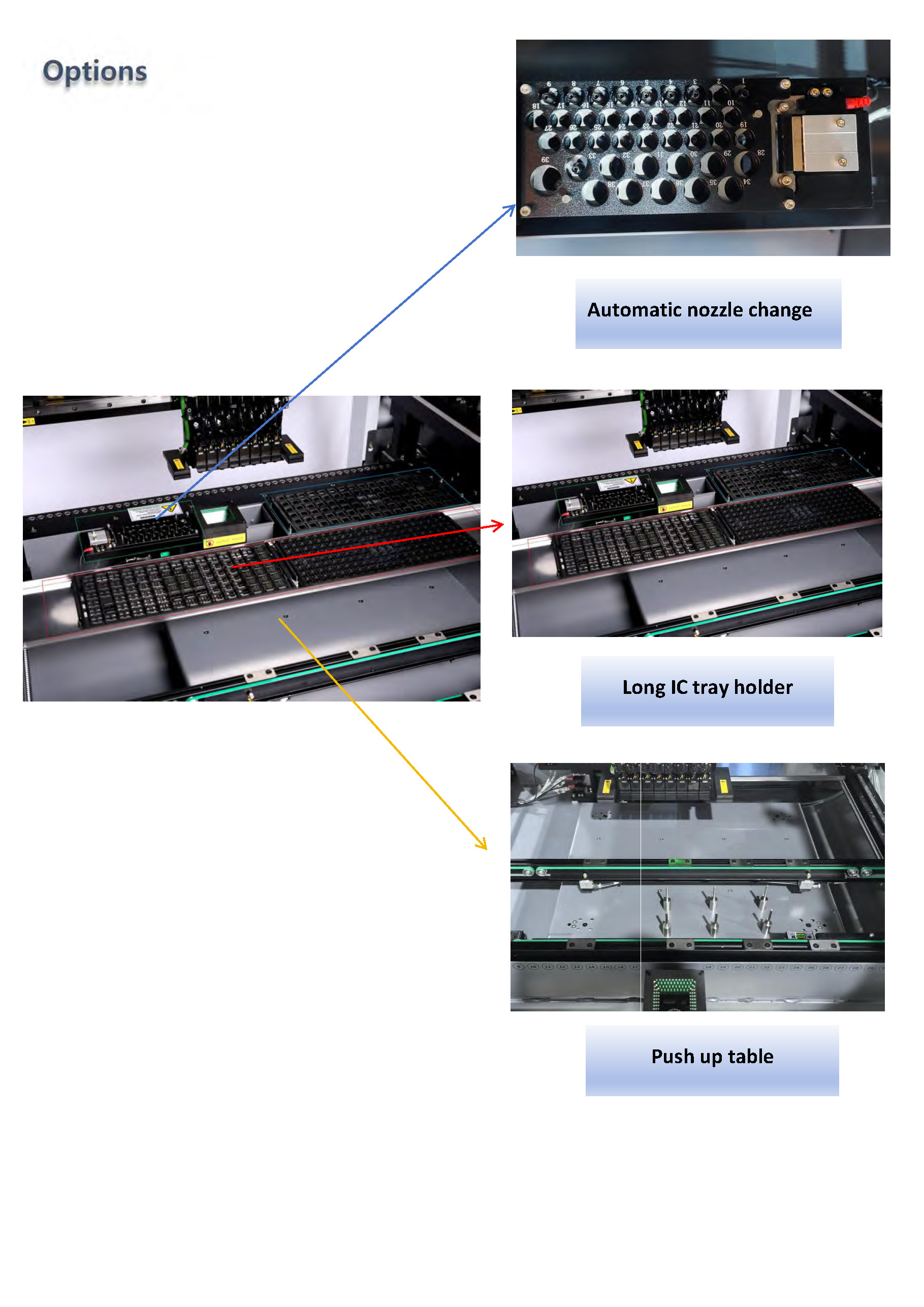

Automatic nozzle change function has been added to the system.
39 nozzle positions increase

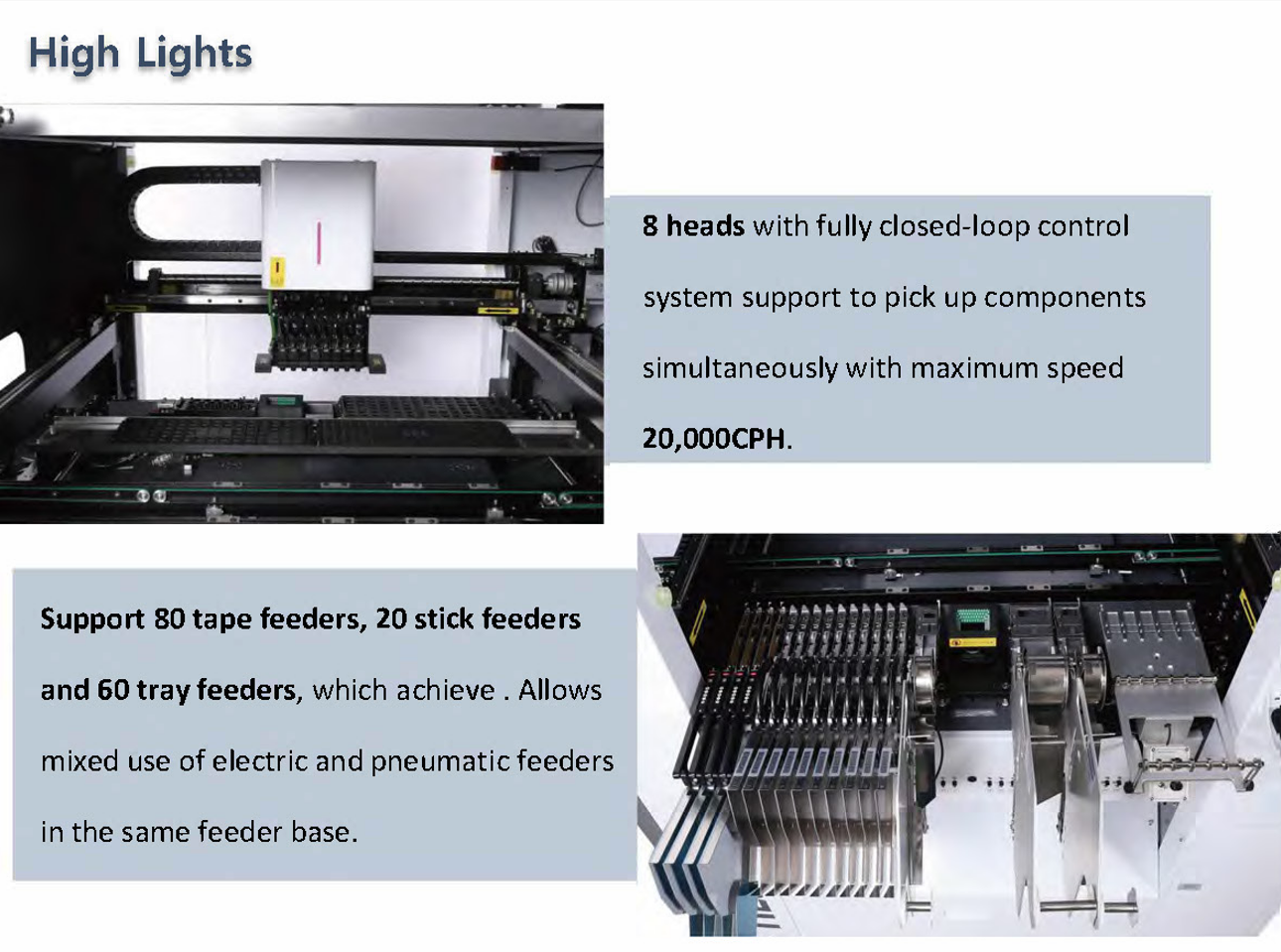

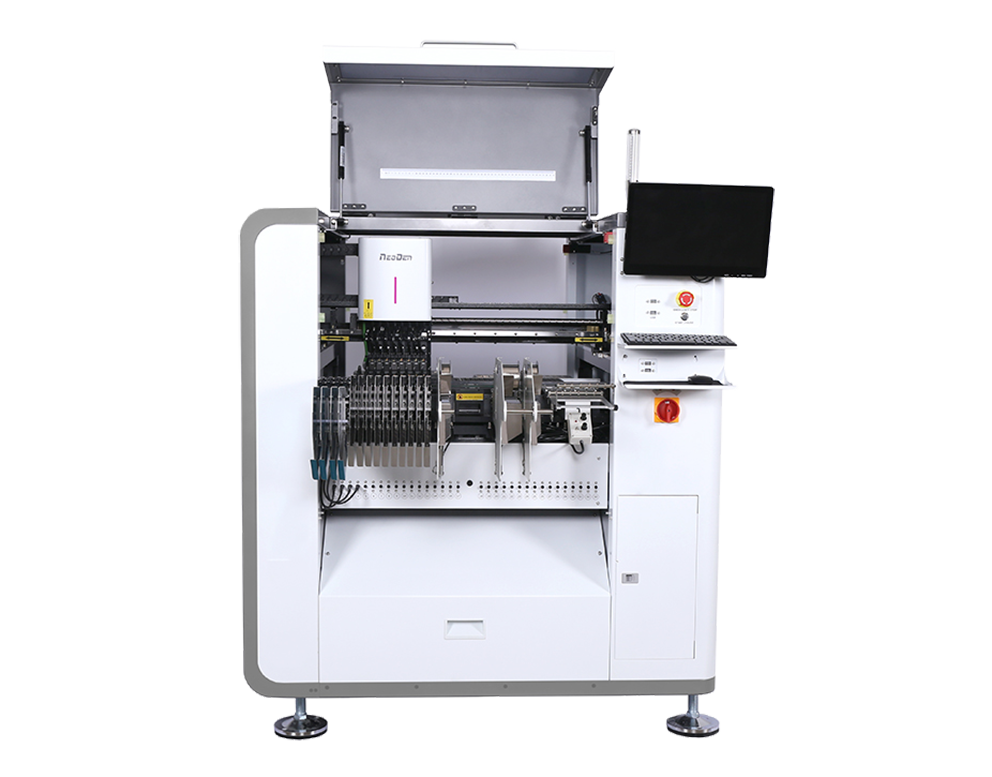

The speed and flexibility of integrated placement.
IC camera improves the size of IC photos and realizes automatic calibration with automatic nozzle change.

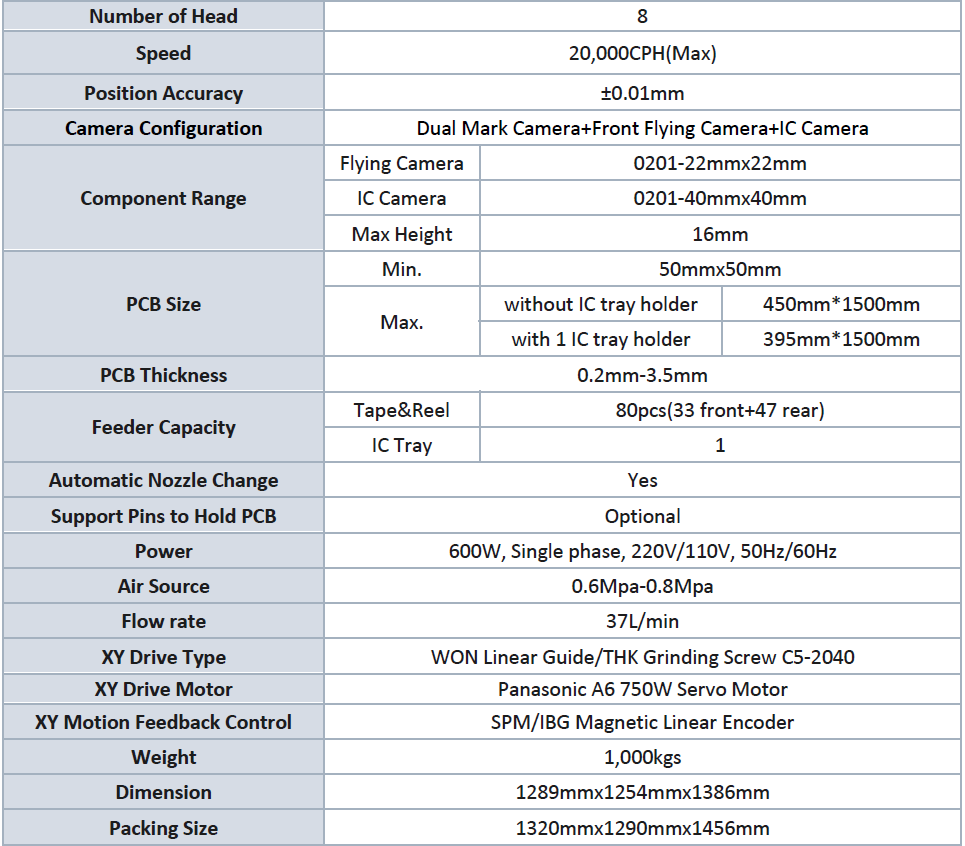

| Number of Head | 8 | ||
| Speed | 20,000CPH(Max) | ||
| Position Accuracy | ±0.01mm | ||
| Camera Configuration | Dual Mark Camera+Front Flying Camera+IC Camera | ||
| Component Range | Flying Camera | 0201-22mmx22mm | |
| IC Camera | 0201-40mmx40mm | ||
| Max Height | 16mm | ||
| PCB Size | Min. | without IC tray holder | 450mm*1500mm |
| Max. | with 1 IC tray holder | 395mm*1500mm | |
| PCB Thickness | 0.2mm-3.5mm | ||
| Feeder Capacity | Tape&Reel | 80pcs(33 front+47 rear) | |
| IC Tray | 1 | ||
| Automatic Nozzle Change | Yes | ||
| Support Pins to Hold PCB | Optional | ||
| Power | 600W, Single phase, 220V/110V, 50Hz/60Hz | ||
| Air Source | 0.6Mpa-0.8Mpa | ||
| Flow rate | 37L/min | ||
| XY Drive Type | WON Linear Guide/THK Grinding Screw C5-2040 | ||
| XY Drive Motor | Panasonic A6 750W Servo Motor | ||
| XY Motion Feedback Control | SPM/IBG Magnetic Linear Encoder | ||
| Weight | 1,000kgs | ||
| Dimension | 1289mmx1254mmx1386mm | ||
| Packing Size | 1320mmx1290mmx1456mm | ||
