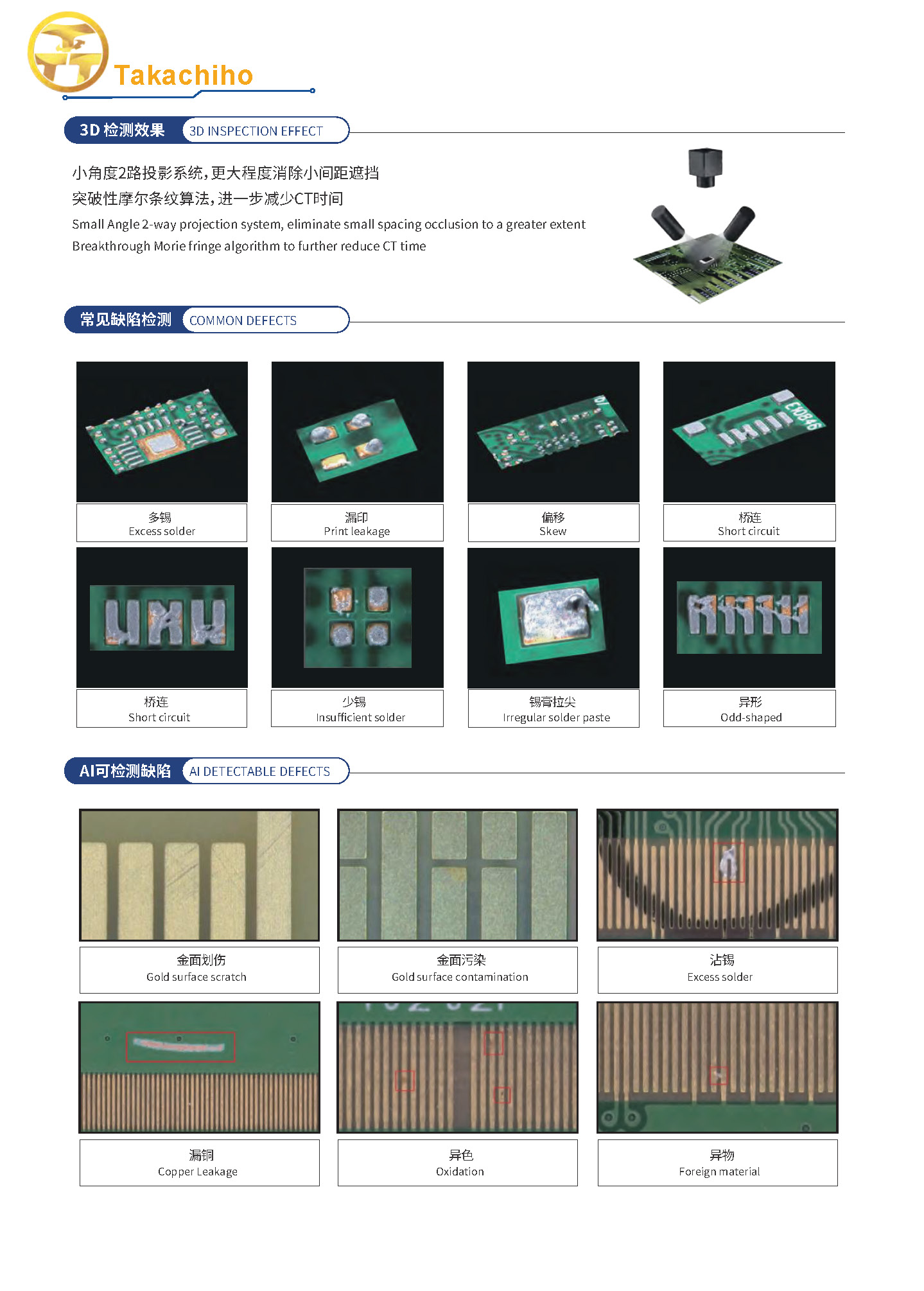

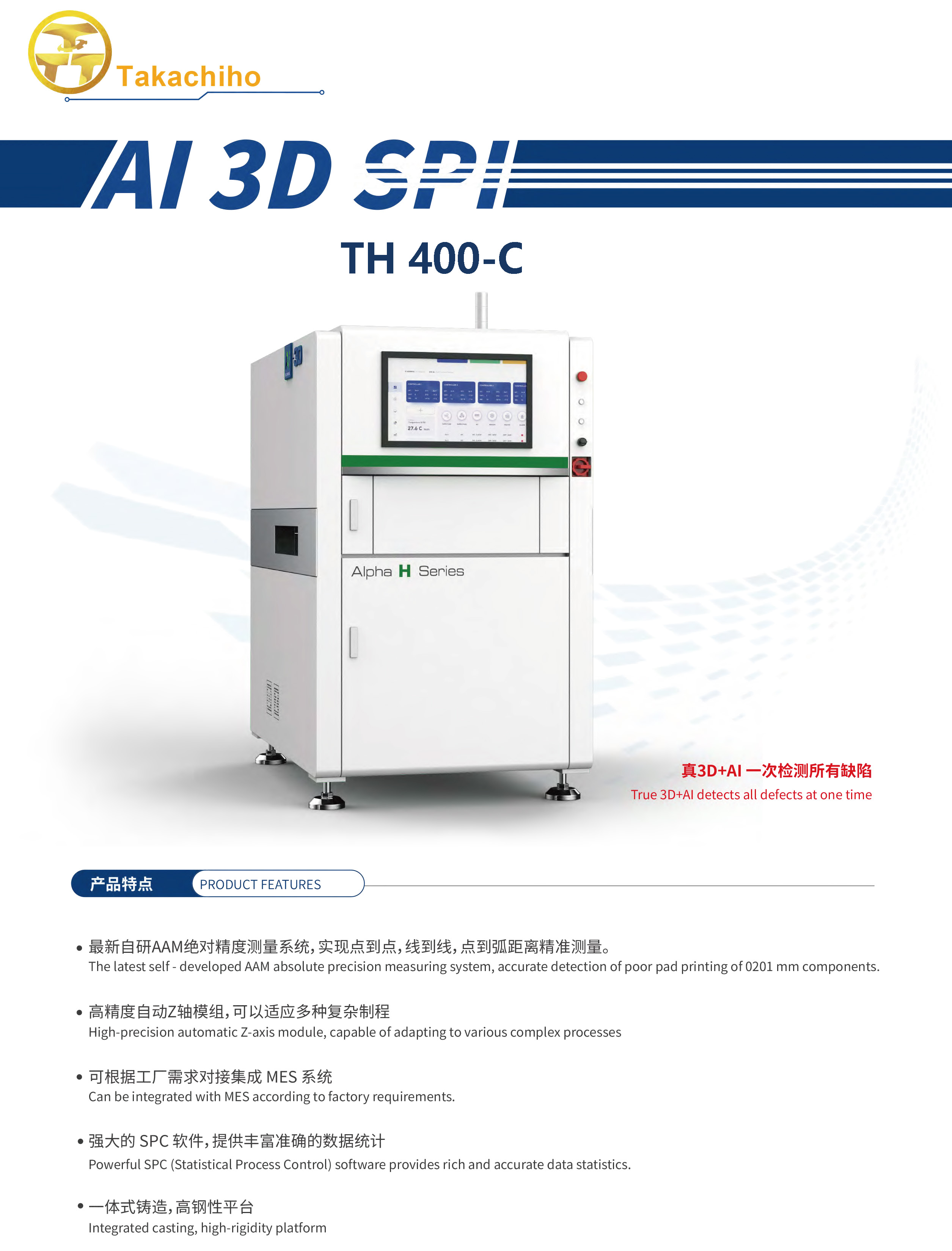

The latest self - developed AAM absolute precision measuring system, accurate detection of poor pad printing of 0201 mm components.
High-precision automatic Z-axis module, capable of adapting to various complex processes
Can be integrated with MES according to factory requirements
Powerful SPC (Statistical Process Control) software provides rich and accurate data statistics.
Integrated casting, high-rigidity platform
Features
True AI+3D

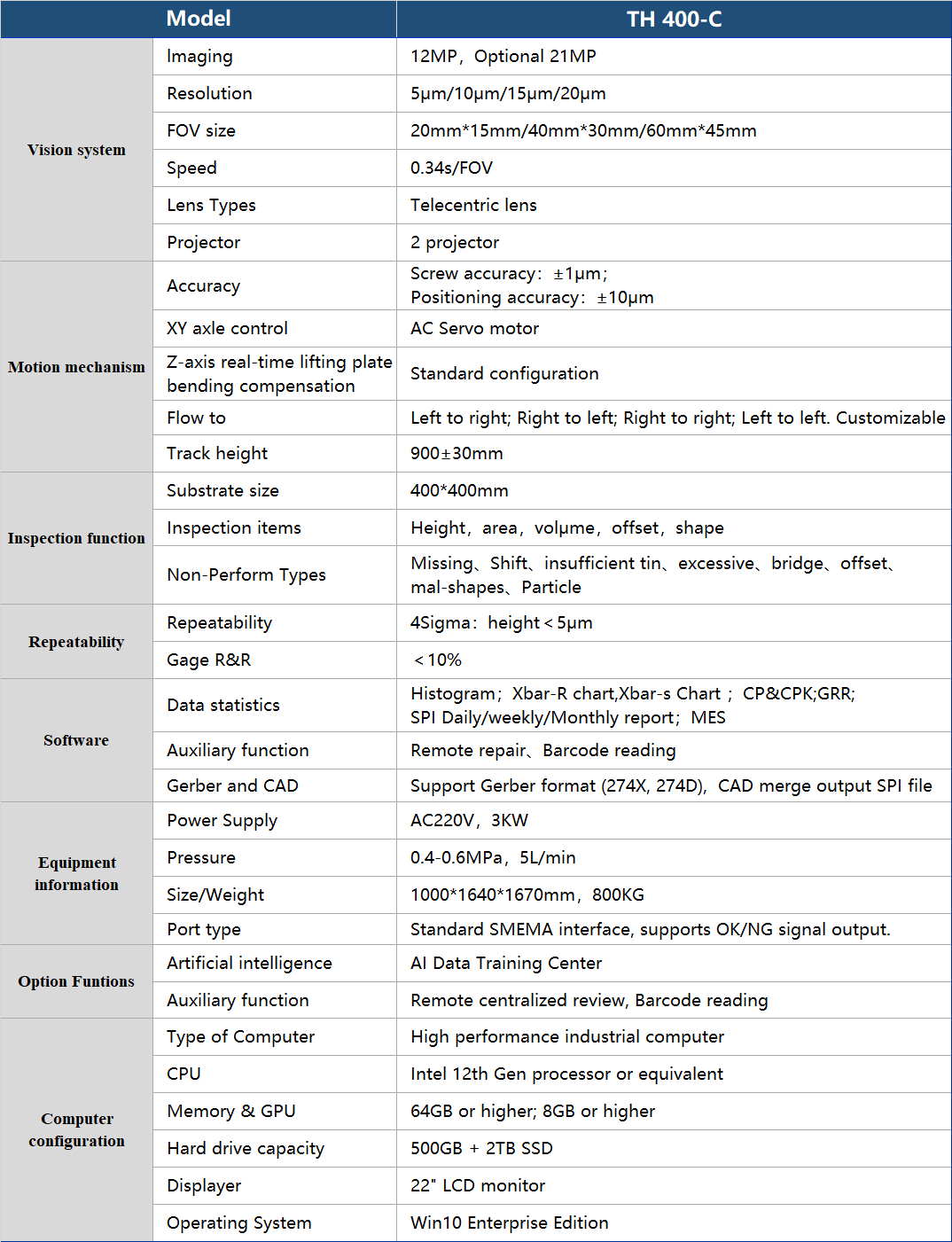

Support PCB within size 400*400mm
Measure height: 25mm,Optional 40mm
lmaging: 12MP，Optional 21MP
